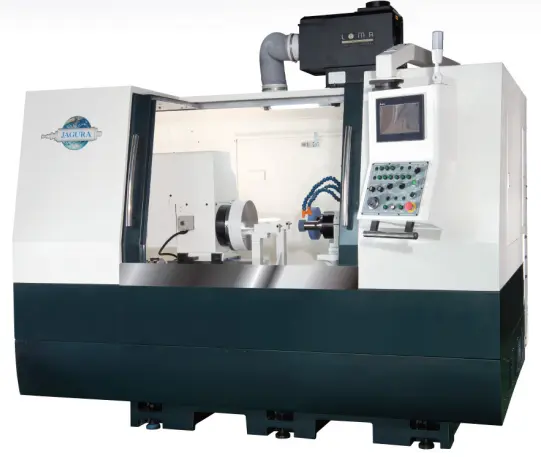

Jugura ICG2512-SL20

Technical Data

Clamping Diameter: 250 mm

Max. Grinding Length:

• Left model: 120 mm

• Right model: 200 mm

Max. Travel:

• X Axis: 500 mm

• Z1 Axis: 260 mm

• Z2 Axis:

  • Left model: 260 mm

  • Right model: 500 mm

Minimum Feeding Unit:

• X Axis: 0.001 mm

• Z1 Axis: 0.001 mm

• Z2 Axis: 0.001 mm

Table Speed:

• X Axis: 0–6 m/min

• Z1 Axis: 0–6 m/min

• Z2 Axis: 0–6 m/min

Workhead Speed: 0–550 rpm

Spindle Speed:

• ID: 10,000–50,000 rpm (according to workpiece)

• OD: 3,440 rpm

Motor Power:

• Workhead: 2 HP

• Spindle:

  • ID: 2 HP

  • OD: 2 HP

• X Axis: 2 kW

• Z1 Axis: 1 kW

• Z2 Axis: 1 kW

Machine Dimensions (L x W x H): 2300 x 1950 x 2000 mm

Weight:

• Left model: About 4350 kgs

• Right model: About 4650 kgs
