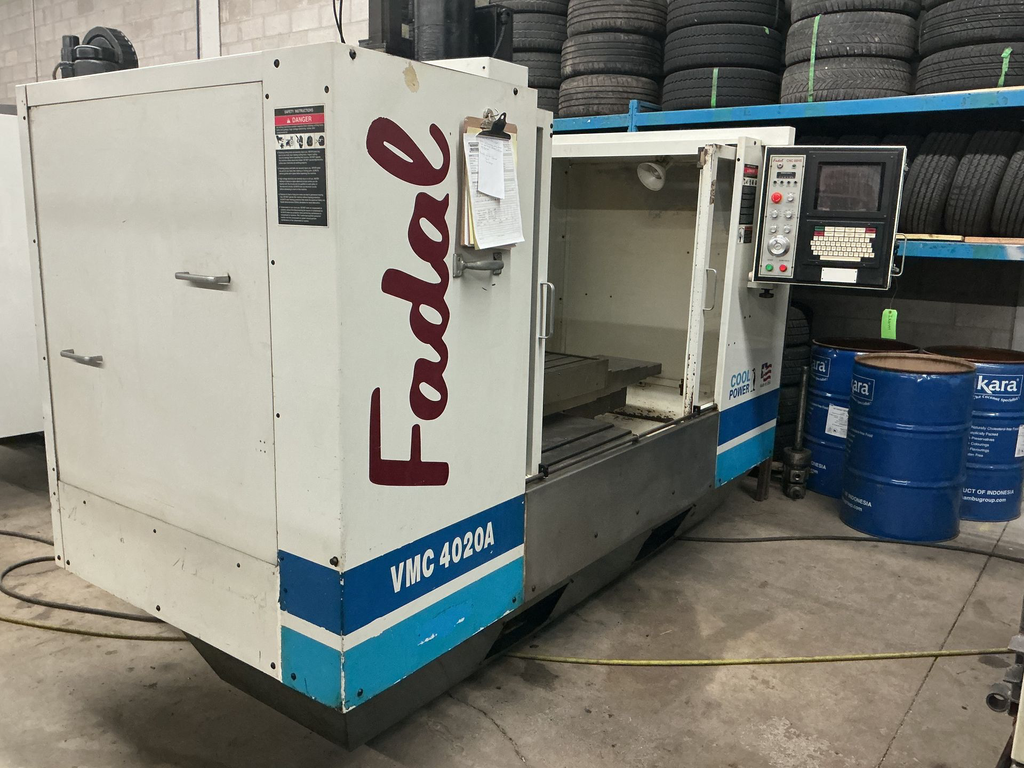

Fadal 4020A

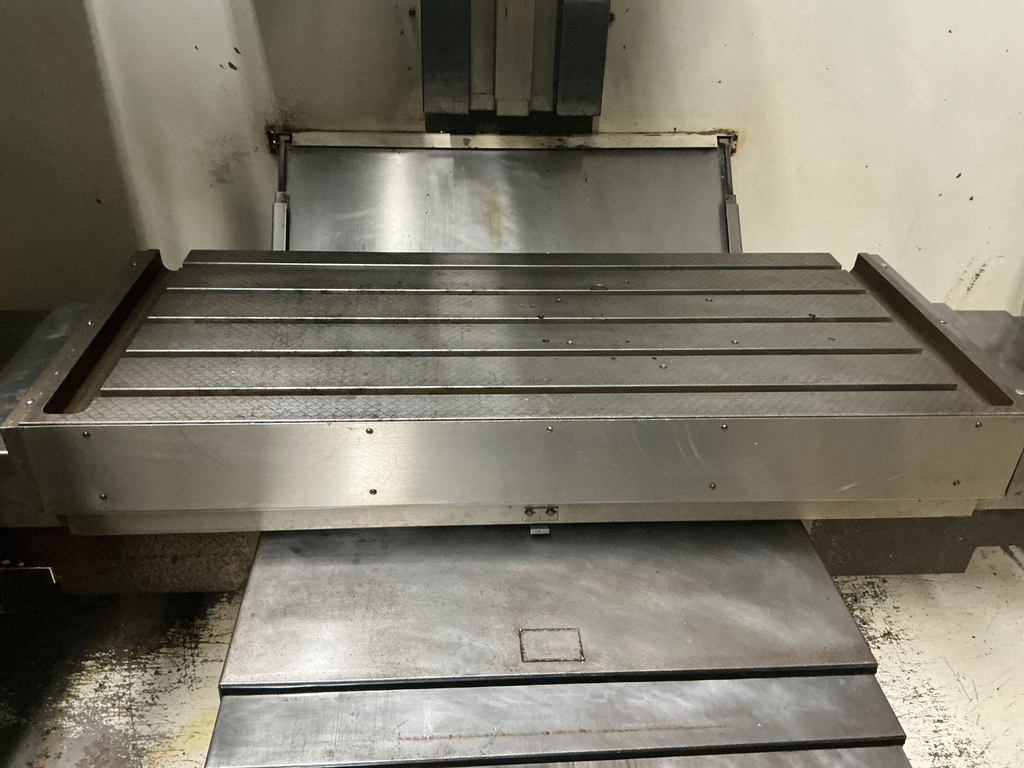

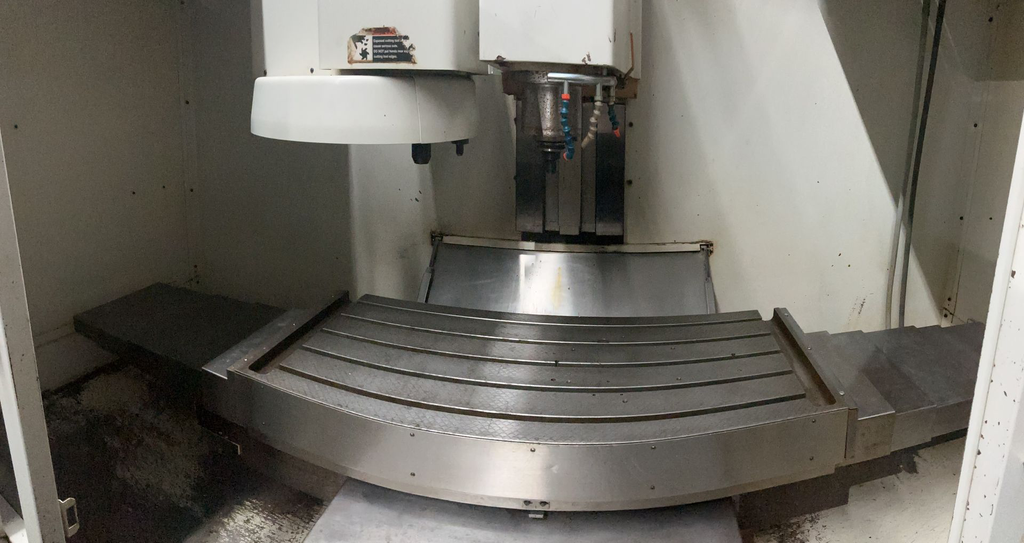

Work Surface (Table Size): 48" X 20"

Maximum Load: 1,500 LBS

Travel XYZ 40x20x20"

Spindle To Table Distance 4" - 24"

Throat Distance: 20"

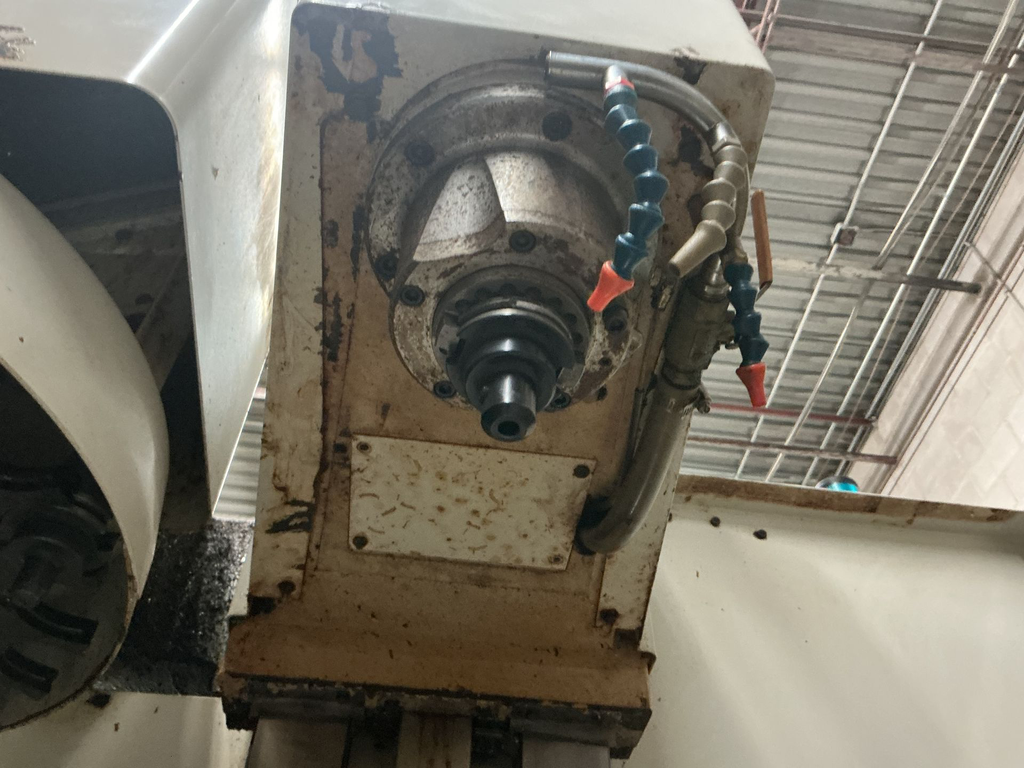

Spindle Taper: CAT 40

Spindle Speeds: 7,500 RPM 2 Range Spindle

Rapid Traverse Rate (X/Y 900 IPM) (Z- 700) IPM

Maximum Cutting Feed Rate: .01-250 IPM

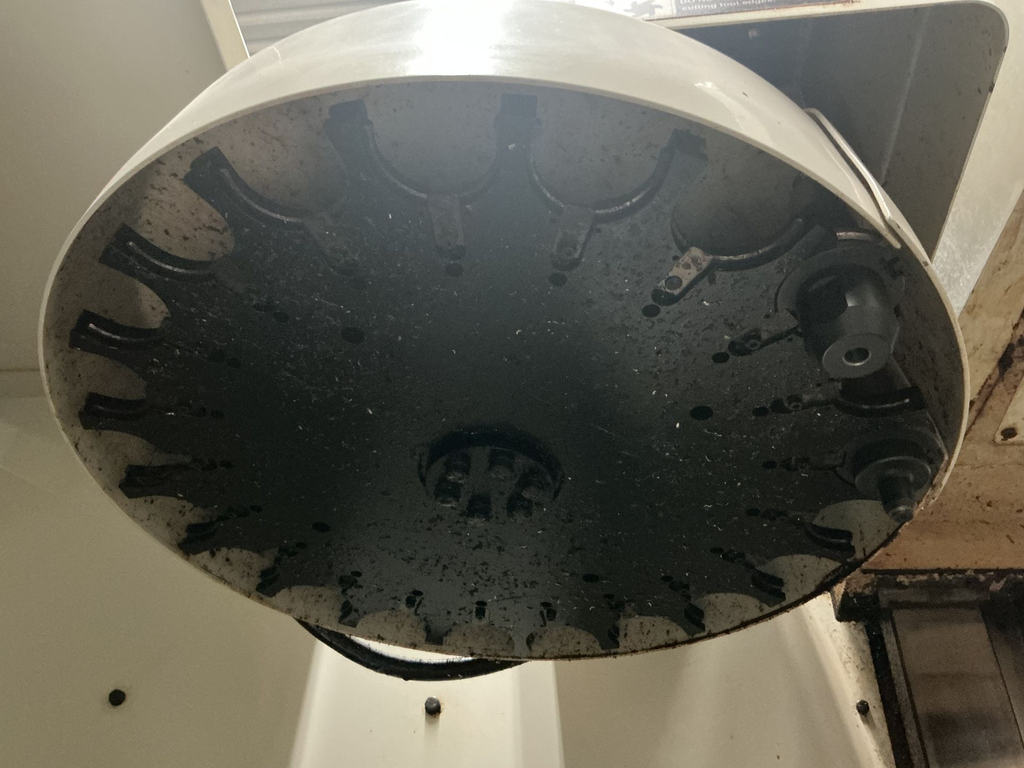

Tool Changer : Carousel (21 Stations)

Max Tool Weight: 15 LBS

Spindle Drive 15 HP

Weight: 10,500 LBS

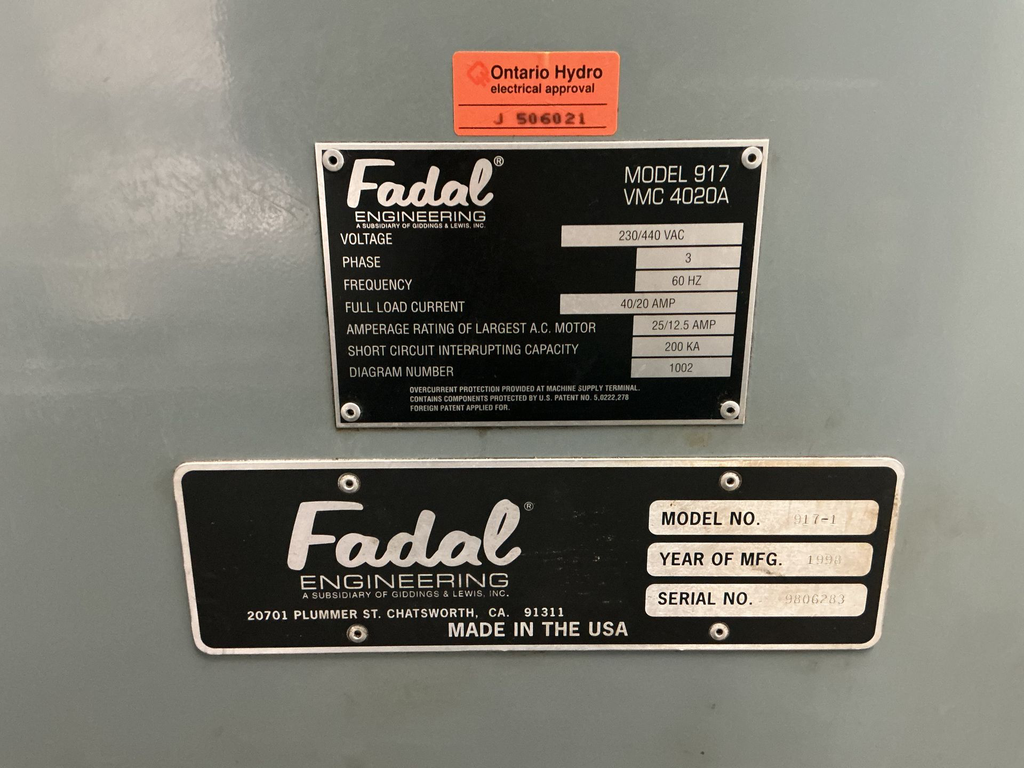

220 Volt 3 Phase 45 AMP Power Requirement

$ 22,500.00 22500.0 CAD $ 22,500.00
